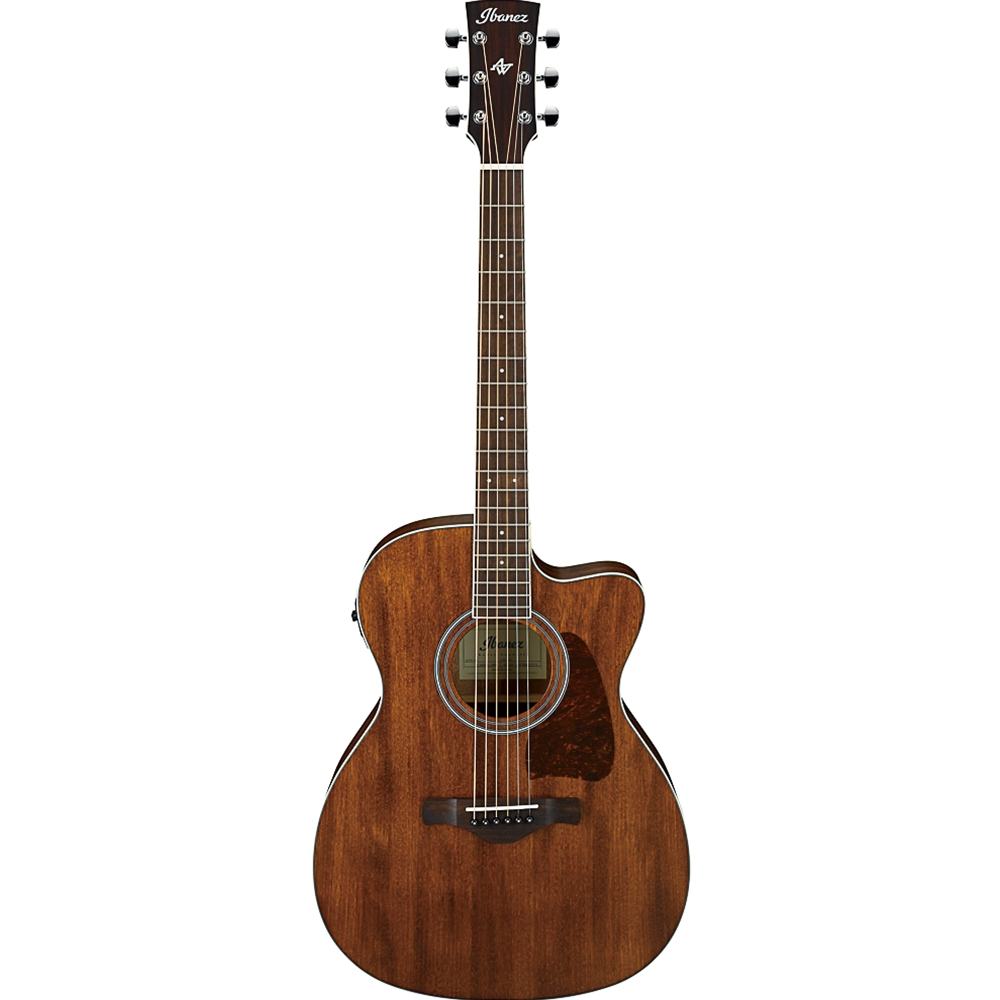

Ibanez AC340CEOPN Artwood Acoustic Electric Guitar - Open Pore Natural
The AC340CE features a cutaway grand concert body shape a solid okoume top on okoume back and sides with an open pore finish. The soundhole is round with a simple black and white acrylic rosette and a red tortoise pickguard. It has a satin finished nyatoh neck with a 20-fret ovangkol fingerboard with white binding and small white dot position markers. Components include a compensated bone saddle in a Thermo Aged ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Ibanez die-cast tuning machines. Electronics consist of a Fishman Sonicore pickup, an Ibanez AEQ-SP2 preamp with onboard tuner powered by a 9V battery and balanced XLR and ¼" outputs.
SPECS
- body shapeCutaway Grand Concert body
- topSolid Okoume top
- back & sidesOkoume back & Okoume sides
- neckACNyatoh neck
- fretboardOvangkol fretboard
- bridgeThermo Aged™ Ovangkol bridge
- inlayWhite dot inlay
- soundhole rosetteBlack & White multi
- tuning machineChrome Die-cast tuners (18:1 gear ratio)
- nut materialBone
- number of frets20
- saddle materialCompensated Bone
- bridge pinsIbanez Advantage™
- stringsD'Addario® XTAPB1253
- string gauge.012/.016/.024/.032/.042/.053
- string space11mm
- factory tuning1E,2B,3G,4D,5A,6E
- pickupFishman® Sonicore
- preampIbanez AEQ-SP2 preamp w/Onboard tuner
- output jackBalanced XLR & 1/4" outputs
- battery9V x1
NECK DIMENSIONS
- Scale :634mm/25"
- a : Width45mm at NUT
- b : Width56mm at 14F
- c : Thickness21mm at 1F
- d : Thickness22mm at 7F
- Radius :400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
BODY DIMENSIONS
- a : Length19 3/8"
- b : Width15 1/4"
- c : Max Depth4 1/4"
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
Model: | AC340CEOPN |
Manufacturer: | Ibanez |
