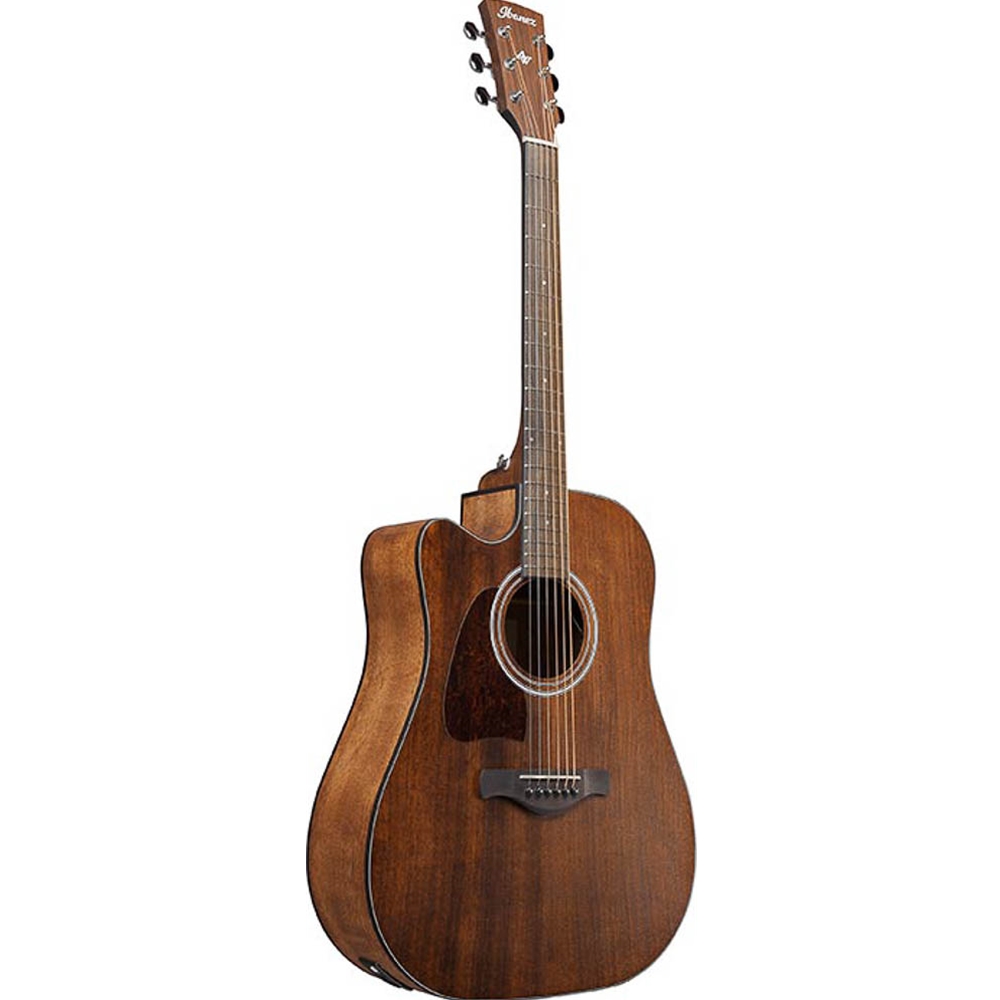

Ibanez AW54LCEOPN Acoustic Electric Artwood Guitar - Left Handed - Open Pore Natural

Artwood Series Acoustic Electric Guitar Left Handed Model

• SPECS

  • body shape
    Cutaway Dreadnought body
  • top
    Solid Okoume top
  • back & sides
    Okoume back & Okoume sides
  • neck
    AWNyatoh neck
  • fretboard
    Laurel fretboard
  • bridge
    Laurel bridge
  • inlay
    White dot inlay
  • soundhole rosette
    Black & White multi
  • tuning machine
    Chrome Die-cast tuners (18:1 gear ratio)
  • number of frets
    20
  • bridge pins
    Ibanez Advantage™
  • strings
    D'Addario® XTAPB1253
  • string gauge
    .012/.016/.024/.032/.042/.053
  • string space
    11mm
  • factory tuning
    1E,2B,3G,4D,5A,6E
  • pickup
    Ibanez T-bar Undersaddle
  • preamp
    Ibanez AEQ-TP2 preamp w/Onboard tuner
  • output jack
    Balanced XLR & 1/4" outputs
  • battery
    9V x1

• NECK DIMENSIONS

  • • Scale :
      648mm/25.5"
    • a : Width
      43mm at NUT
    • b : Width
      54.33mm at 14F
    • c : Thickness
      21mm at 1F
    • d : Thickness
      22mm at 7F
    • Radius :
      400mmR

  •

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

• BODY DIMENSIONS

  • • a : Length
      20 1/8"
    • b : Width
      15 3/4"
    • c : Max Depth
      5"

  •

    DESCRIPTION

    Guitar Body Diagram
    A: Length of the body
    B: Maximum width of the body
    C: Maximum depth of the body

• PREAMP



  DESCRIPTION

  The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
