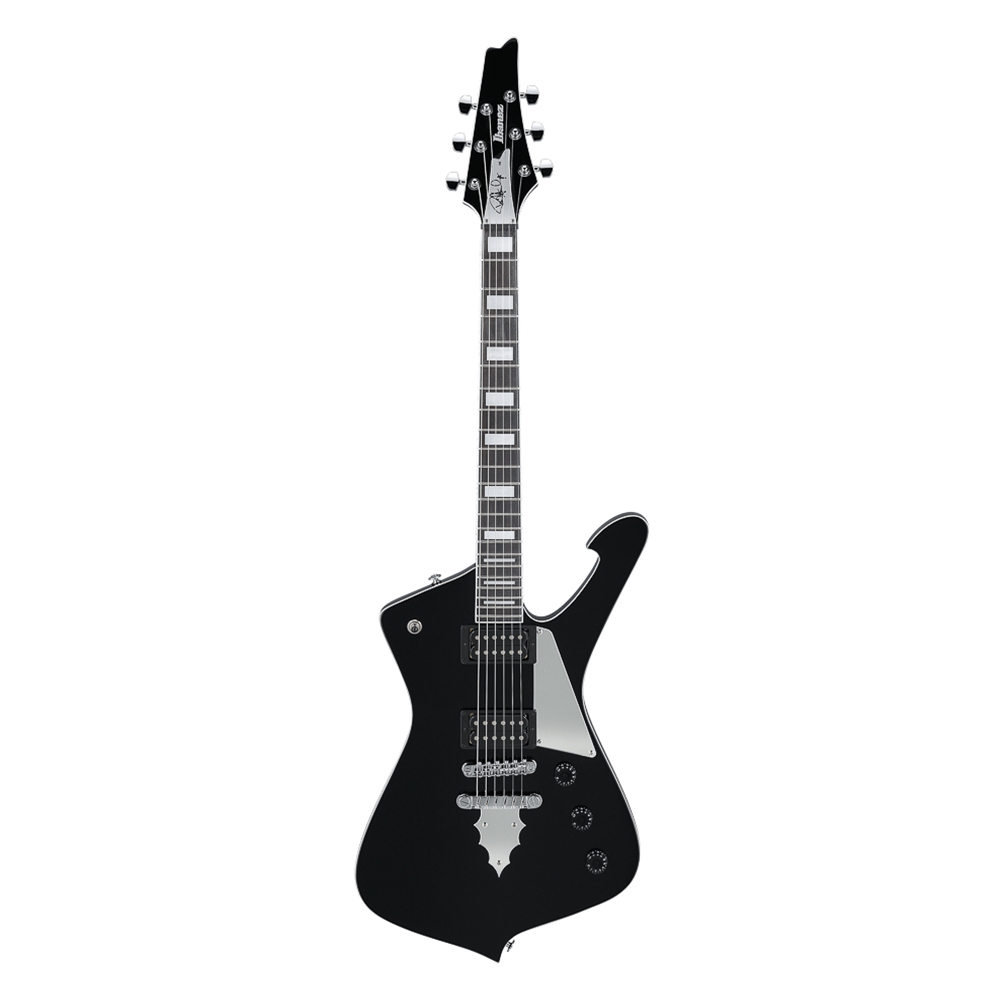

Ibanez PS60BK Paul Stanley Black Electric Guitar
Alternative Views:
In stock
Regular Price:
$466.65
On Sale For:
$349.99
SKU:
7100-PS60BK^PS60BK
Manufacturer Part #:
PS60BK
Features
SPECS
- neck typePSMaple neck
- top/back/bodyPoplar body
- fretboardBound Purpleheart fretboardWhite block inlay
- fretMedium frets
- number of frets22
- bridgeGibraltar Performer bridge
- string space10.5mm
- tailpieceQuik Change III tailpiece
- neck pickupInfinity R (H) neck pickupPassive/Ceramic
- bridge pickupInfinity R (H) bridge pickupPassive/Ceramic
- factory tuning1E,2B,3G,4D,5A,6E
- string gauge.010/.013/.017/.026/.036/.046
- hardware colorChrome
NECK DIMENSIONS
- Scale :628mm/24.75"
- a : Width43mm�at NUT
- b : Width56mm�at 22F
- c : Thickness20mm�at 1F
- d : Thickness22mm�at 12F
- Radius :305mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are three knobs located along the lower edge of the body. From the end of the body towards the neck they are; tone, bridge volume, and neck volume knob. A three-way pickup selector switch is located towards the upper half of the guitar near the neck pickup.
<
| Model: | PS60BK |
| Manufacturer: | Ibanez |
