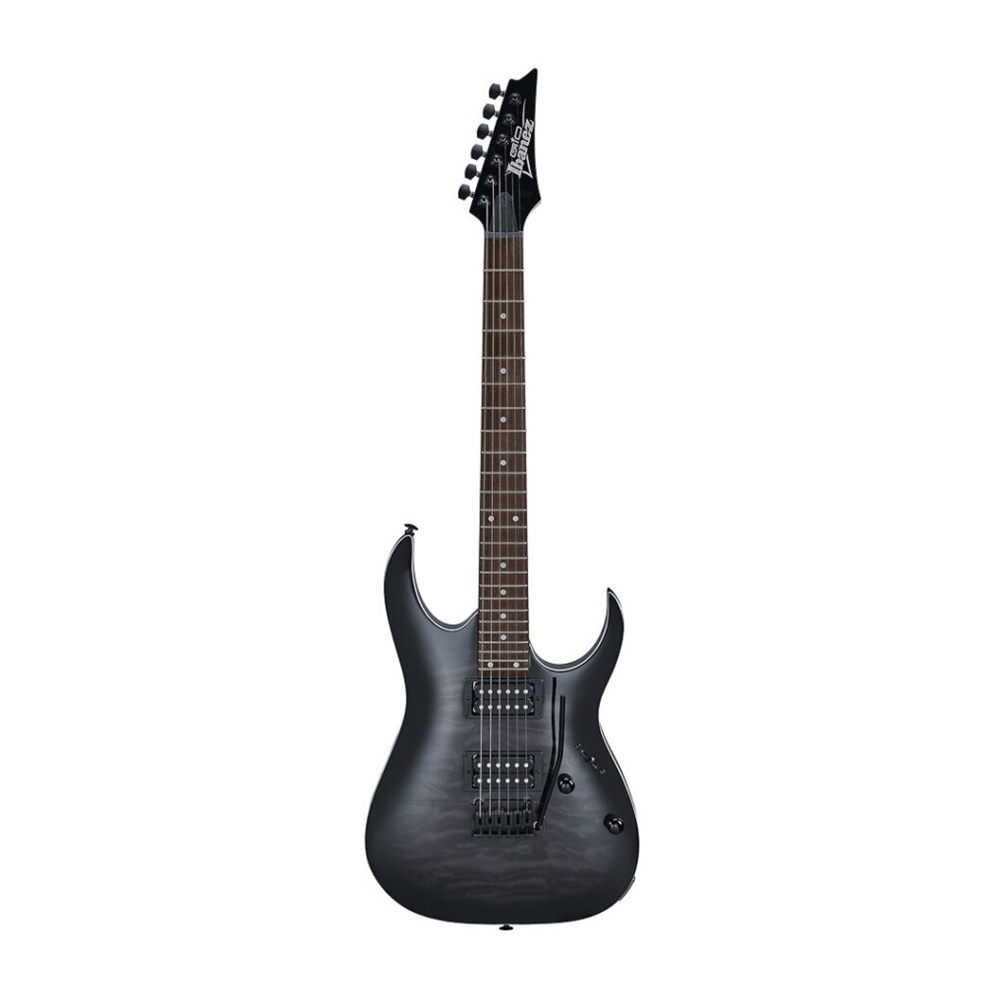

Ibanez GRGA120QATKS RGA Transparent Black Sunburst Guitar
Alternative Views:
In stock
Regular Price:
$428.56
On Sale For:
$299.99
SKU:
7100-GRGA120QATKS^GRGA120QATKS
Manufacturer Part #:
GRGA120QATKS
Features
SPECS
-
neck typeGRGAMaple neck
-
top/back/bodyQuilted Maple Art Grain topPoplar body
-
fretboardBound Purpleheart fretboardWhite dot inlay
-
fretMedium frets
-
number of frets24
-
bridgeT102 tremolo bridge
-
string space10.5mm
-
neck pickupInfinity R (H) neck pickupPassive/Ceramic
-
bridge pickupInfinity R (H) bridge pickupPassive/Ceramic
-
factory tuning1E,2B,3G,4D,5A,6E
-
string gauge.009/.011/.016/.024/.032/.042
-
hardware colorBlack
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width43mm&#FFFD;at NUT
-
b : Width58mm&#FFFD;at 24F
-
c : Thickness19.5mm&#FFFD;at 1F
-
d : Thickness21.5mm&#FFFD;at 12F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
<
| Model: | GRGA120QATKS |
| Manufacturer: | Ibanez |
