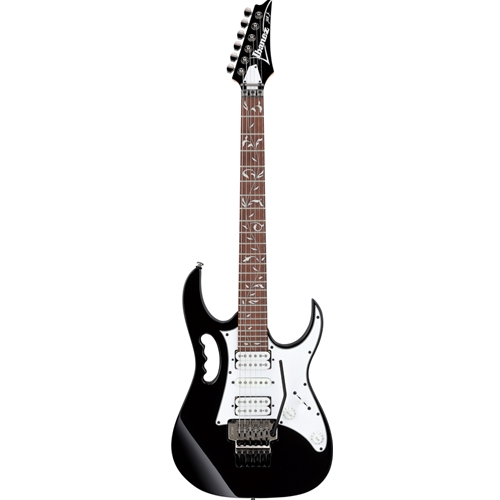

Ibanez JEMJRBK Steve Vai Signature Electric Guitar - Black

Electric Guitar, Steve Vai Double Locking tremolo. One of JEM's most recognizable features: Steve Vai's signature monkey grip. Crank your amp up, grab that baby and hold on for dear life. Jatoba Fretboard w/Tree-of-life inlay has a reddish brown color which produces a rich mid range with a crisp high end.Wizard III Maple Neck is thin, flat and fast. It is strong and sturdy with unlimited playability, featuring a 2-octave 24-fret fretboard for a wide tonal range.

• SPECS

  • neck type
    Wizard IIIMaple neck
  • top/back/body
    Meranti body
  • fretboard
    Jatoba fretboardTree of Life inlay
  • fret
    Jumbo frets
  • number of frets
    24
  • bridge
    Double Locking bridge
  • string space
    10.5mm
  • neck pickup
    Quantum (H) neck pickupPassive/Ceramic
  • middle pickup
    Quantum (S) middle pickupPassive/Alnico
  • bridge pickup
    Quantum (H) bridge pickupPassive/Ceramic
  • factory tuning
    1E,2B,3G,4D,5A,6E
  • string gauge
    .009/.011/.016/.024/.032/.042
  • nut
    Locking nut
  • hardware color
    Cosmo Black

• NECK DIMENSIONS

  • • Scale :
      648mm/25.5"
    • a : Width
      43mm at NUT
    • b : Width
      58mm at 24F
    • c : Thickness
      19mm at 1F
    • d : Thickness
      21mm at 12F
    • Radius :
      400mmR

  •

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

• SWITCHING SYSTEM



  DESCRIPTION

  When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

• CONTROLS



  DESCRIPTION

  With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
