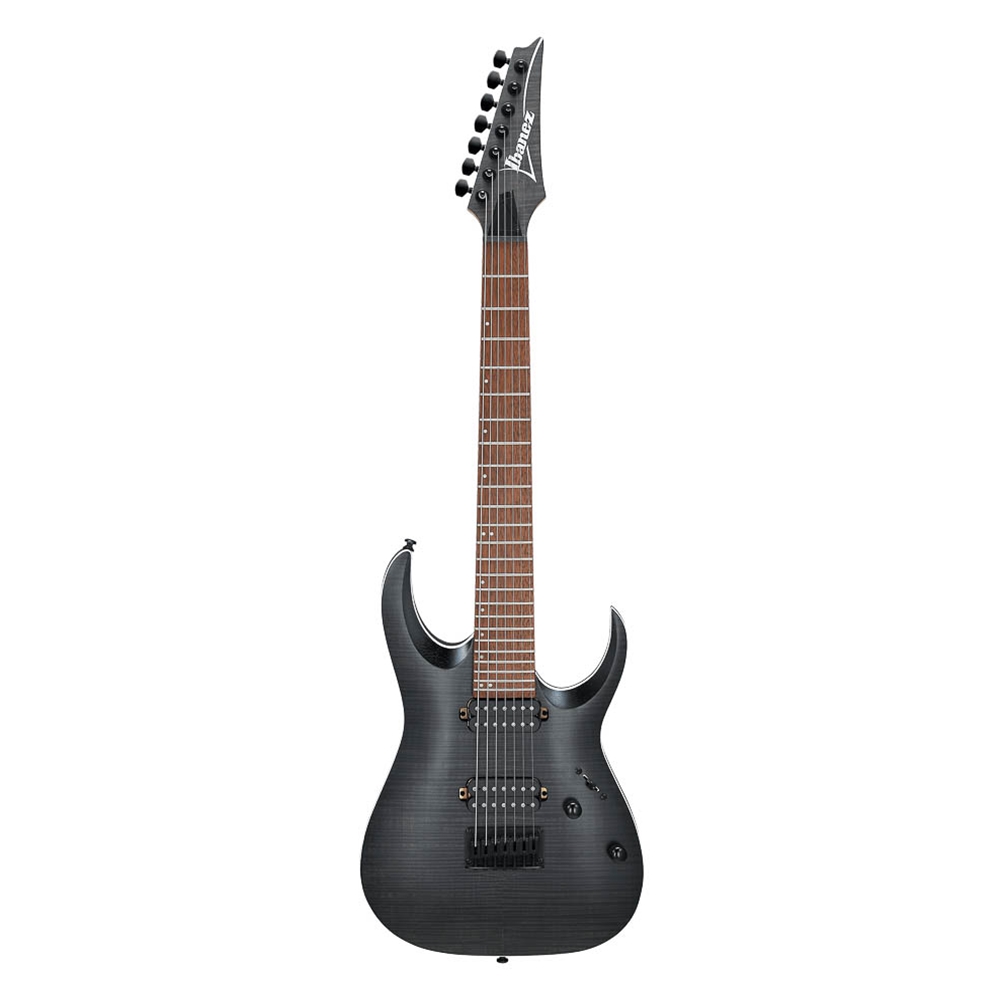

Ibanez RGA742FMTGF RGA Standard 7-String Electric Guitar - Transparent Gray Flat
Alternative Views:
In stock
Regular Price:
$688.88
On Sale For:
$499.99
SKU:
7100-RGA742FMTGF^RGA742FMTGF
Manufacturer Part #:
RGA742FMTGF
Features
SPECS
- neck typeWizard II-73pc Maple neck
- top/back/bodyFlamed Maple topMeranti body
- fretboardJatoba fretboardOff-set white dot inlay
- fretJumbo frets
- number of frets24
- bridgeF107 bridge
- string space10.5mm
- neck pickupQuantum 7 (H) neck pickupPassive/Ceramic
- bridge pickupQuantum 7 (H) bridge pickupPassive/Ceramic
- factory tuning1E,2B,3G,4D,5A,6E,7B
- stringsD'Addario® XL110-7
- string gauge.010/.013/.017/.026/.036/.046/.059
- hardware colorBlack
NECK DIMENSIONS
- Scale :648mm/25.5"
- a : Width48mm at NUT
- b : Width68mm at 24F
- c : Thickness19mm at 1F
- d : Thickness21mm at 12F
- Radius :400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
| Model: | RGA742FMTGF |
| Manufacturer: | Ibanez |
