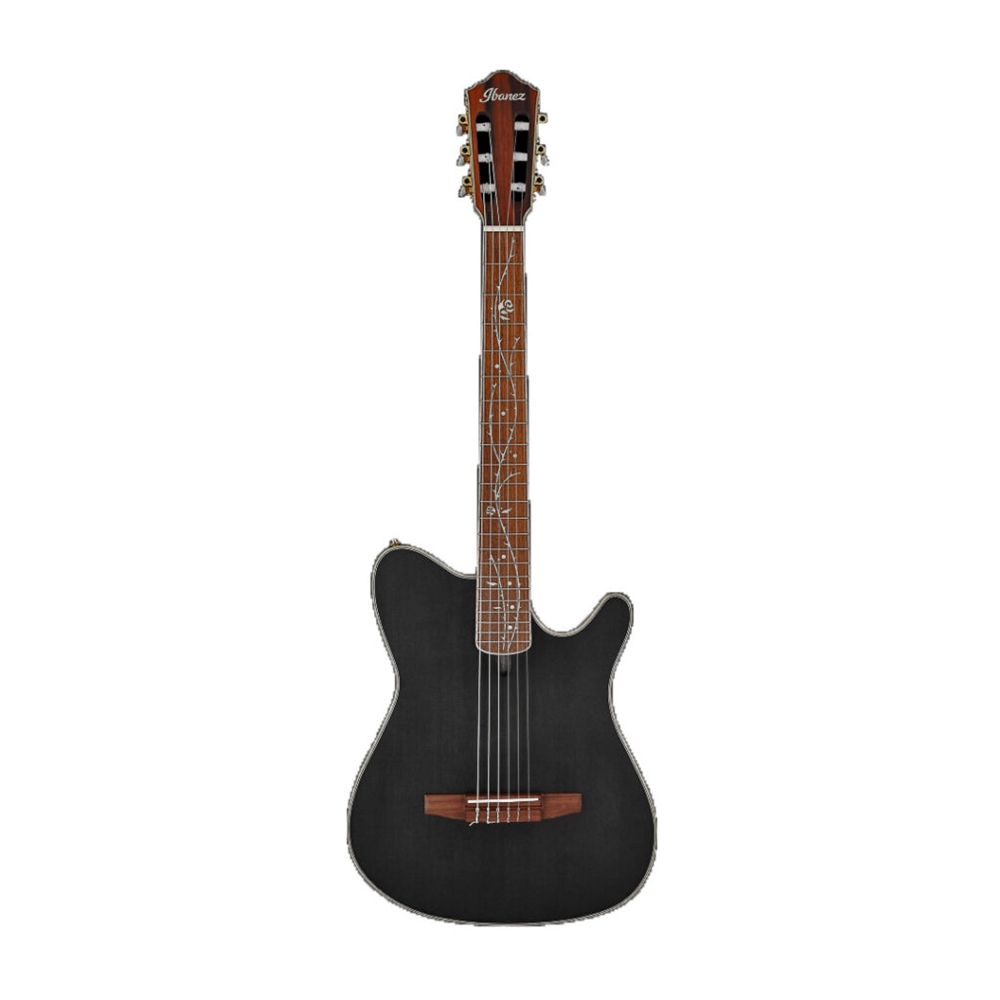

Ibanez TOD10NTKF Tim Henson (Polyphia) Acoustic Electric Guitar - Transparent Black Flat
Alternative Views:
In stock
Regular Price:
$1,049.99
On Sale For:
$699.99
SKU:
ae00-22971^TOD10NTKF
Manufacturer Part #:
TOD10NTKF
Features
SPECS
- body shapeFRH body
- bracingFan Bracing for FRH
- topSolid Sitka Spruce top
- back & sidesSapele back & Sapele sides
- neckC ShapeNyatoh neck
- fretboardWalnut fretboard
- bridgeWalnut bridge
- body bindingPearloid Binding
- inlayTree of Death inlay
- tuning machineGold Classical tuners
- number of frets22
- stringsD'Addario® XTC45
- string gauge.028/.032/.040/.028W/.035W/.044W
- string space11.6mm
- factory tuning1E,2B,3G,4D,5A,6E
- pickupFishman® S-Core
- preampIbanez AEQ210TF preamp w/Onboard tuner
- output jack1/4" output
- battery9V battery
NECK DIMENSIONS
- Scale :648mm/25.5"
- a : Width46mm at NUT
- b : Width58mm at 14F
- c : Thickness21mm at 1F
- d : Thickness22mm at 7F
- Radius :400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
BODY DIMENSIONS
- a : Length17 5/16"
- b : Width14 3/16"
- c : Max Depth1 15/16"
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
| Model: | TOD10NTKF |
| Manufacturer: | Ibanez |
