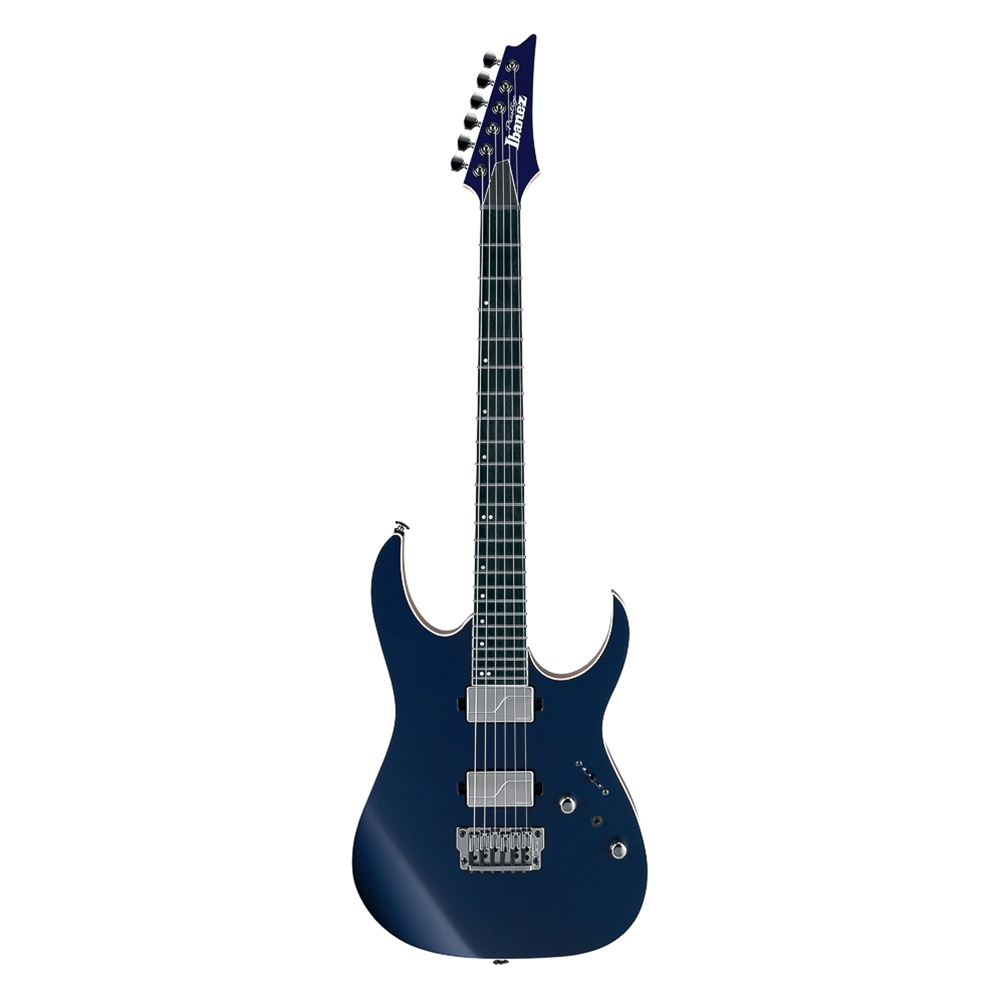

Ibanez RG5121DBF Electric Guitar w/Hardshell Case, Dark Blue
SPECS
- neck typeSuper Wizard HP5pc Maple/Wenge neck
- top/back/bodyAfrican Mahogany body
- fretboardBound Macassar Ebony fretboardOff-set Mother of Pearl dot inlay
- fretJumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets24
- bridgeGibraltar Standard II bridge
- string space10.8mm
- neck pickupFishman® Fluence™ Modern Humbucker (H) neck pickupActive/Ceramic
- bridge pickupFishman® Fluence™ Modern Humbucker (H) bridge pickupActive/Ceramic
- factory tuning1E,2B,3G,4D,5A,6E
- stringsD'Addario® EXL110
- string gauge.010/.013/.017/.026/.036/.046
- nutGraph Tech® BLACK TUSQ XL® nut
- hardware colorCosmo black
NECK DIMENSIONS
- Scale :648mm/25.5"
- a : Width43mm at NUT
- b : Width58mm at 24F
- c : Thickness17mm at 1F
- d : Thickness19mm at 12F
- Radius :430mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is a three-way pickup selector switch. Closer to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a Fishman Fluence voicing switch. When the switch is in the neck position, the pickup is set to voicing 2. When the switch is in the bridge position, the pickup is set to voicing 1.
OTHER FEATURES
- Hardshell case included
- Fishman® Fluence Voicing switch
- Luminlay side dots
- Gotoh® MG-T locking machine heads
Model: | RG5121DBF |
Manufacturer: | Ibanez |
