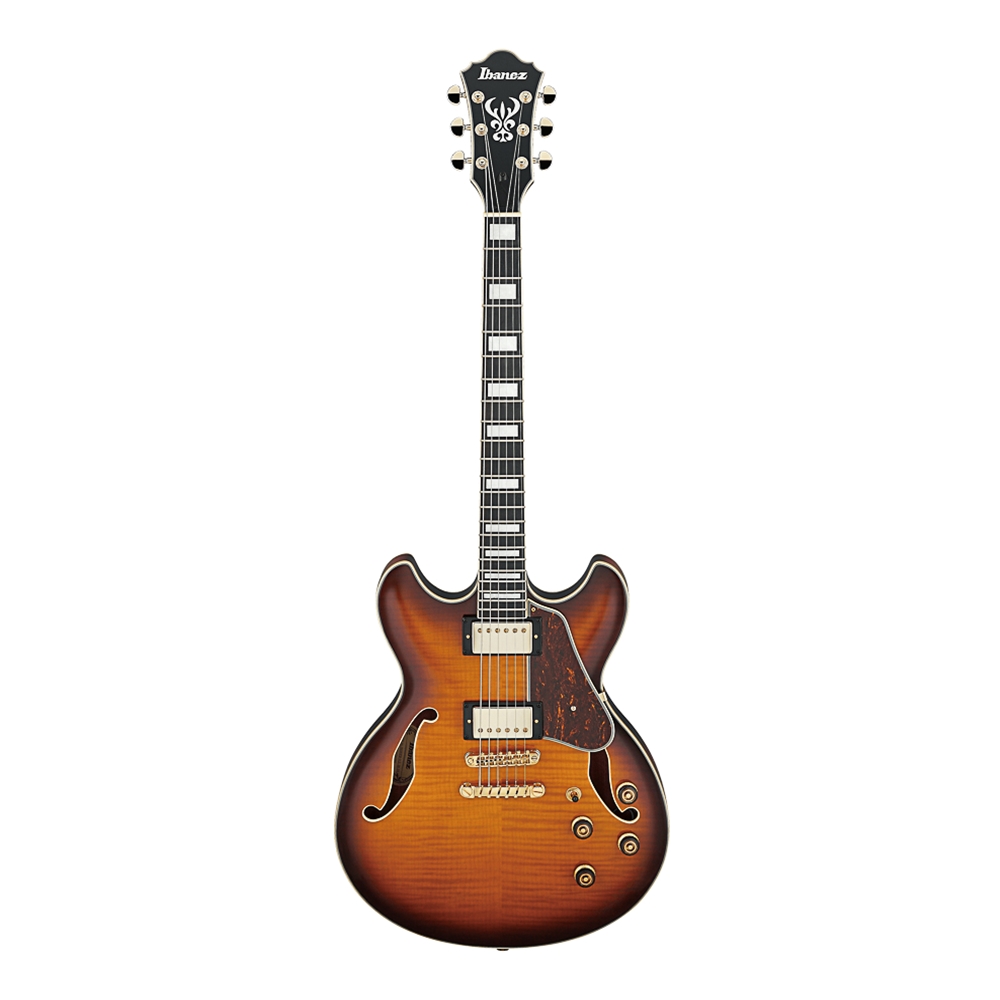

Ibanez AS93FMVLS Artcore Expressionist Semi- Hollow Body Electric Guitar - Violin Sunburst

Artcore Expressionist Hollow Body Electric Guitar.

• SPECS

  • neck type
    AS Expressionist3pc Nyatoh/MapleSet-in neck
  • top/back/side
    Flamed Maple top Flamed Maple backFlamed Maple sides
  • fretboard
    Bound Macassar Ebony fretboardAcrylic block inlay
  • fret
    Medium frets
  • number of frets
    22
  • bridge
    Gibraltar Performer bridge
  • string space
    10.5mm
  • tailpiece
    Quik Change III tailpiece
  • neck pickup
    Super 58 (H) neck pickupPassive/Alnico
  • bridge pickup
    Super 58 (H) bridge pickupPassive/Alnico
  • factory tuning
    1E,2B,3G,4D,5A,6E
  • string gauge
    .010/.013/.017/.030/.042/.052
  • hardware color
    Gold

• NECK DIMENSIONS

  • • Scale :
      628mm
    • a : Width
      43mm at NUT
    • b : Width
      57mm at 22F
    • c : Thickness
      21mm at 1F
    • d : Thickness
      24mm at 9F
    • Radius :
      305mmR

  •

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

• BODY DIMENSIONS

  • • a : Length
      19 1/4"
    • b : Width
      15 3/4"
    • c : Max Depth
      2 5/8"

  •

    DESCRIPTION

    Guitar Body Diagram
    A: Length of the body
    B: Maximum width of the body
    C: Maximum depth of the body

• SWITCHING SYSTEM



  DESCRIPTION

  When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

• CONTROLS



  DESCRIPTION

  With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
