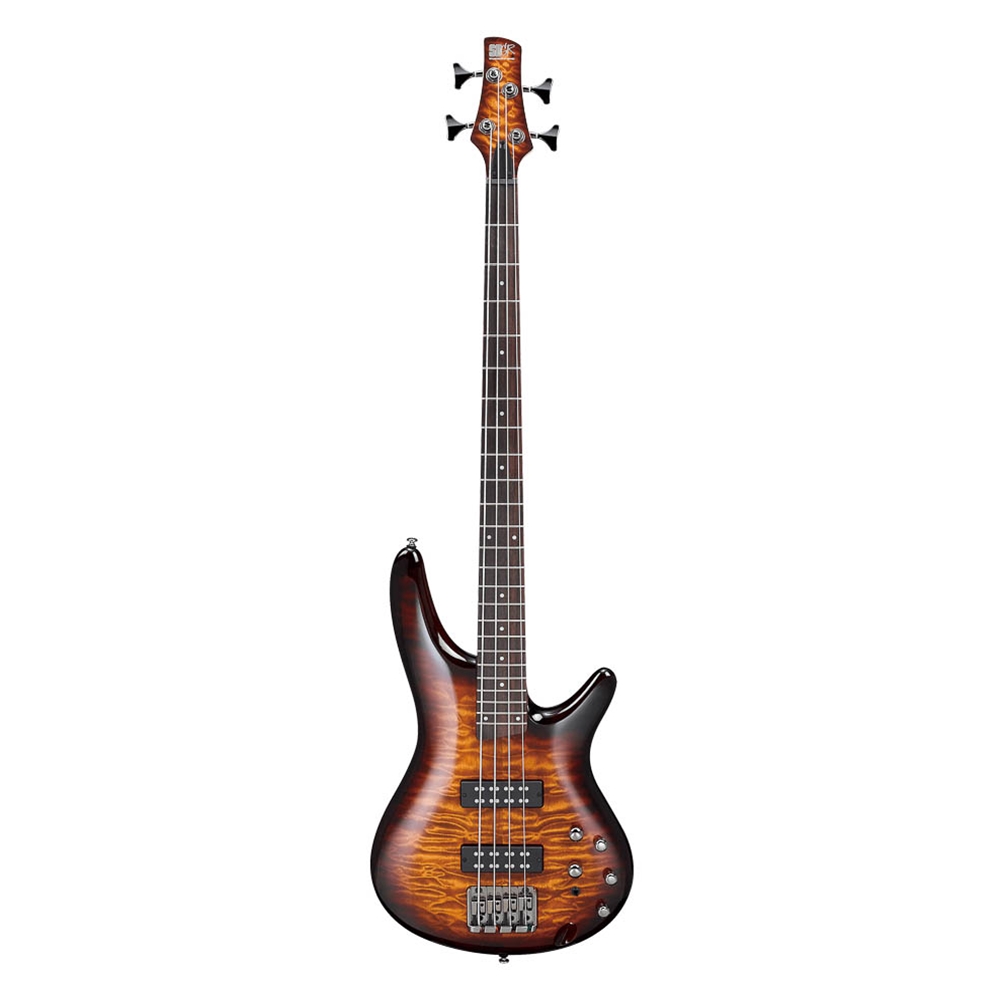

Ibanez SR400EQMDEB SR Standard 4-String Electric Bass Guitar - Dragon Eye Burst
Alternative Views:
In stock
Regular Price:
$639.99
On Sale For:
$479.99
SKU:
7100-SR400EQMDEB^SR400EQMDEB
Manufacturer Part #:
SR400EQMDEB
Features
SPECS
- neck typeSR45pc Maple/Walnut neck
- top/back/bodyQuilted Maple topNyatoh body
- fretboardJatoba fretboardWhite dot inlay
- fretMedium frets
- number of frets24
- bridgeAccu-cast B300 bridge
- string space19mm
- neck pickupPowerSpan Dual Coil neck pickupPassive
- bridge pickupPowerSpan Dual Coil bridge pickupPassive
- equaliserIbanez Custom Electronics 3-band EQ w/3-way Power Tap switch
- factory tuning1G,2D,3A,4E
- stringsD'Addario® EXL165
- string gauge.045/.065/.085/.105
- hardware colorCosmo black
NECK DIMENSIONS
- Scale :864mm/34"
- a : Width38mm at NUT
- b : Width62mm at 24F
- c : Thickness19.5mm at 1F
- d : Thickness21.5mm at 12F
- Radius :305mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
CONTROLS
DESCRIPTION
With the bass held in the playing position, there are three small knobs closest to the lower edge of the body. Directionally, from the lower bout towards the neck knobs are treble boost/cut, mid boost/cut, and bass boost/cut. There are two larger knobs above these, closer to the bridge. The knob closest to the neck controls volume, and the knob next to it is the pickup balancer control. There is a 3-way power tap switch next to the balancer knob. When the switch is in neck position, the humbuckers are tapped. When the switch is in center position, the humbuckers are in series. when the switch is in bridge position, the humbuckers are in power tap mode, which is tapped with additional low end added.
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve with a peak around 450 Hz, and the variable width becomes zero near 20 Hz and around 10,000 Hz. The variable range of the peak frequency is approximately ±15 dB.
| Model: | SR400EQMDEB |
| Manufacturer: | Ibanez |
