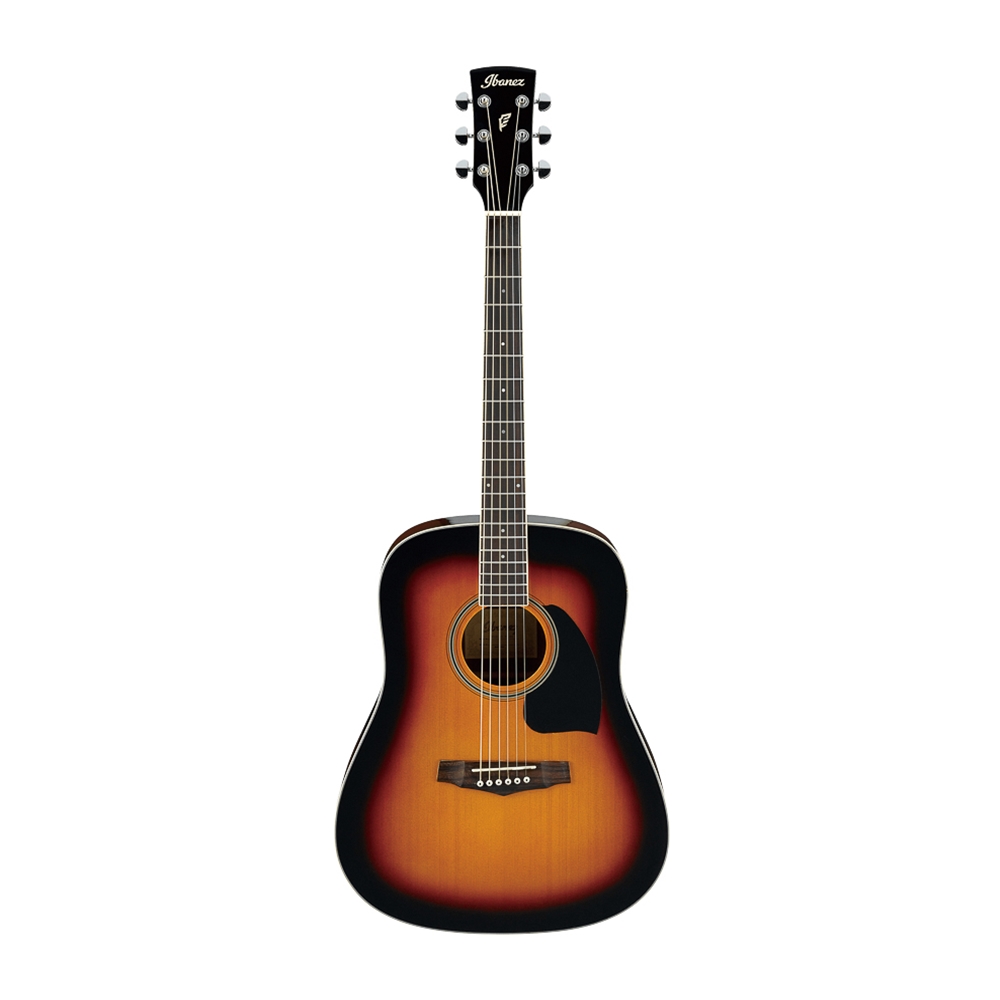

Ibanez PF15VS PF Series Sunburst Dreadnought Guitar

• Scale :
  650mm/25.6"
• a : Width
  42mm at NUT
• b : Width
  54mm at 14F
• c : Thickness
  21.5mm at 1F
• d : Thickness
  23.5mm at 7F
• Radius :
  250mmR

DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

• a : Length
  19 3/4"
• b : Width
  15 7/8"
• c : Max Depth
  5"

DESCRIPTION

Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
